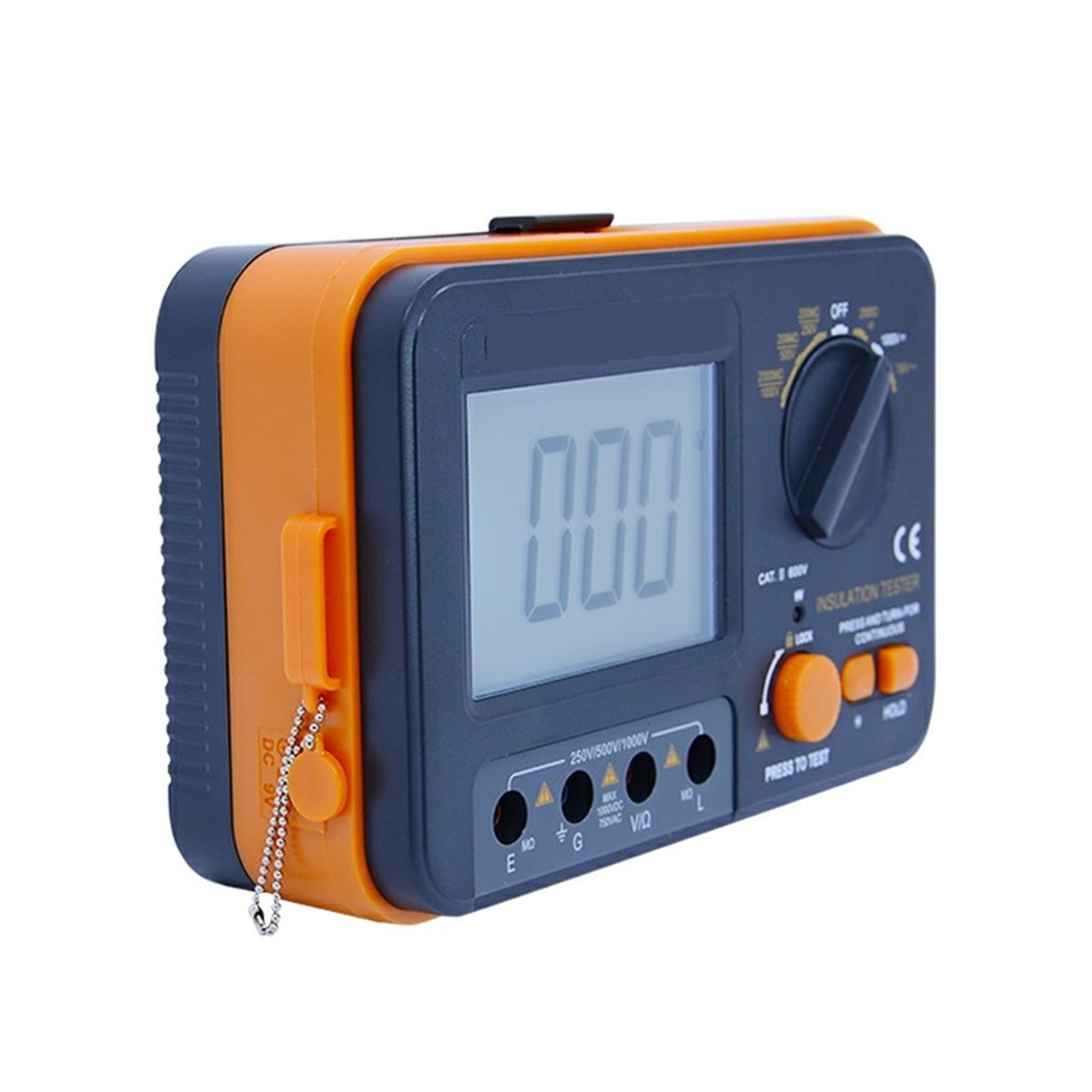

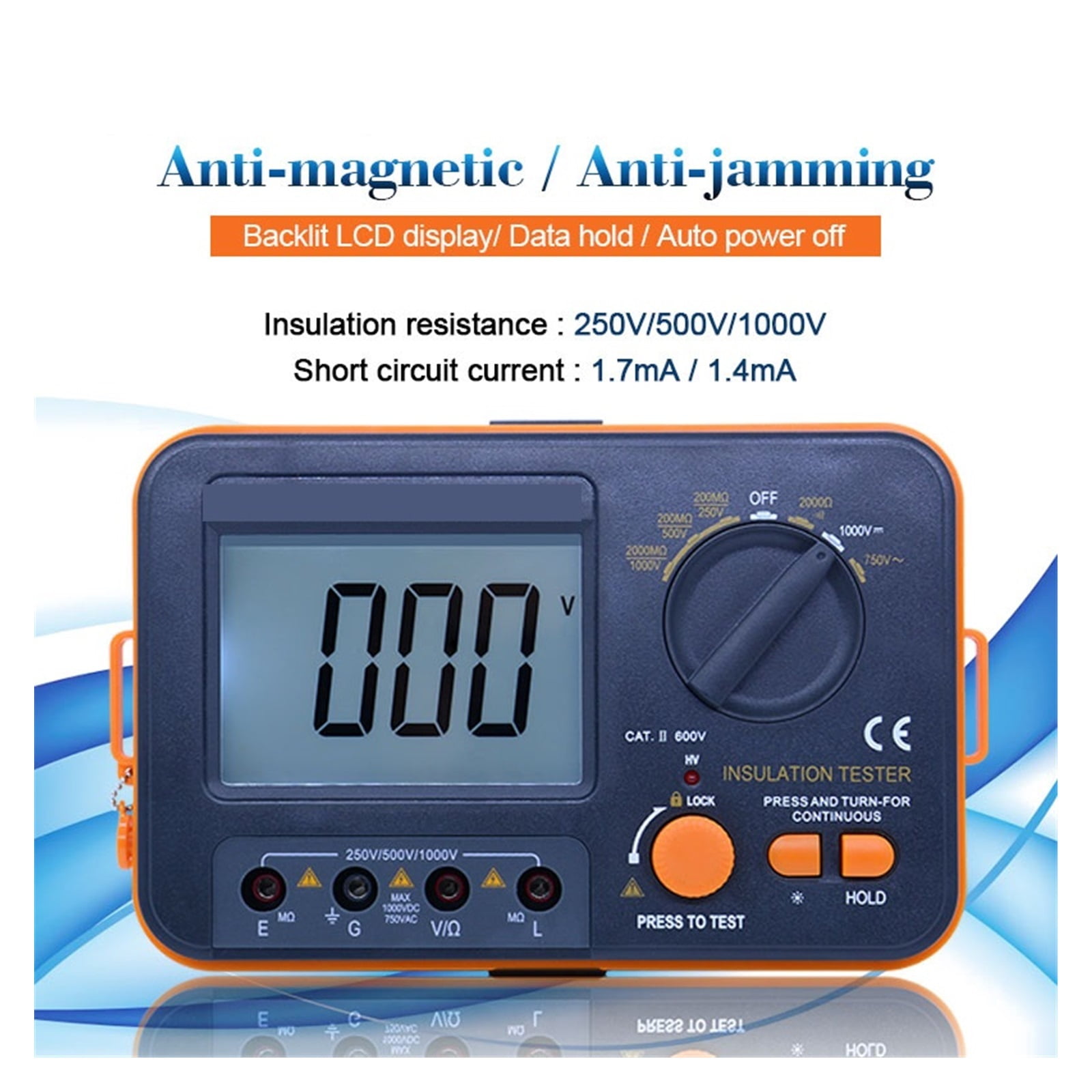

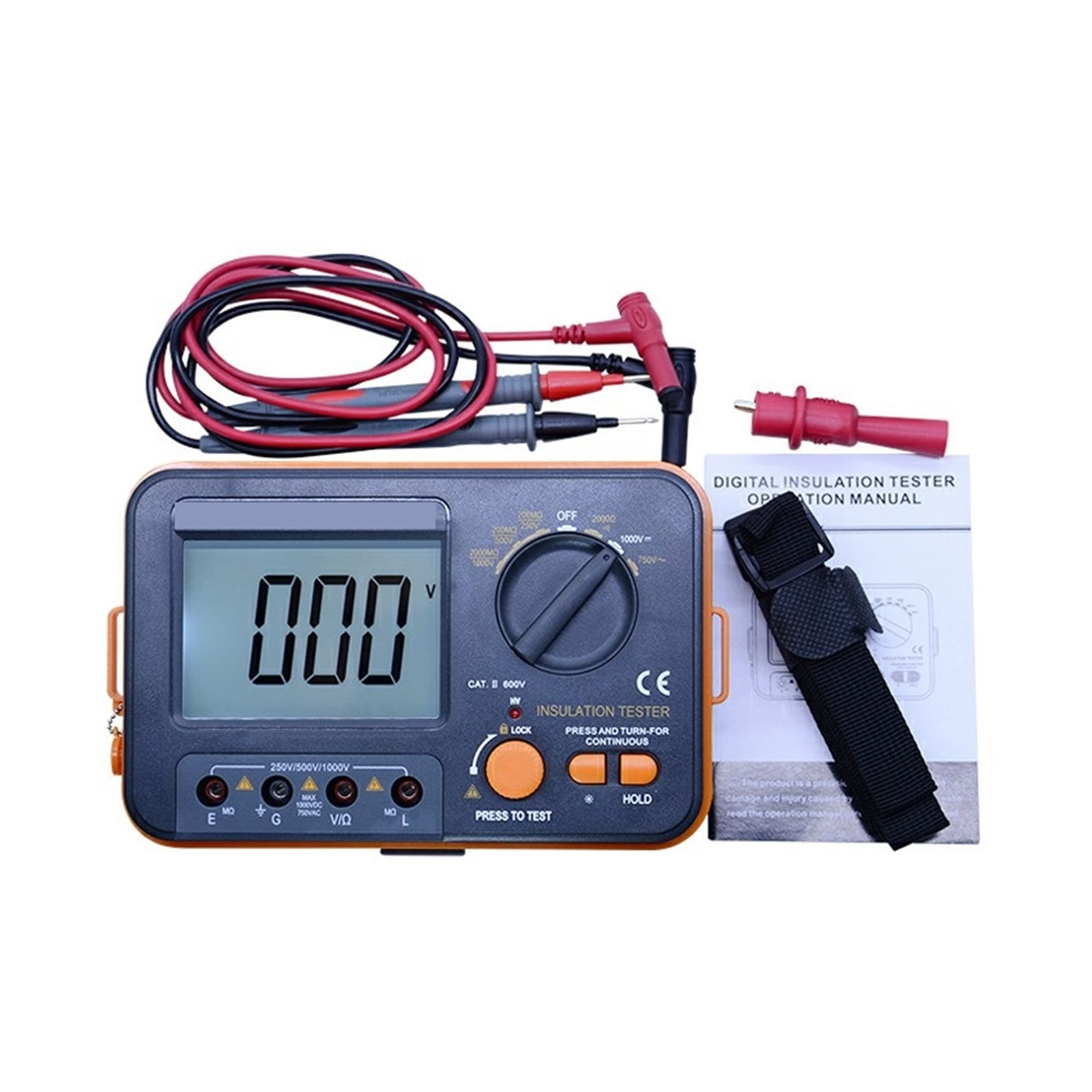

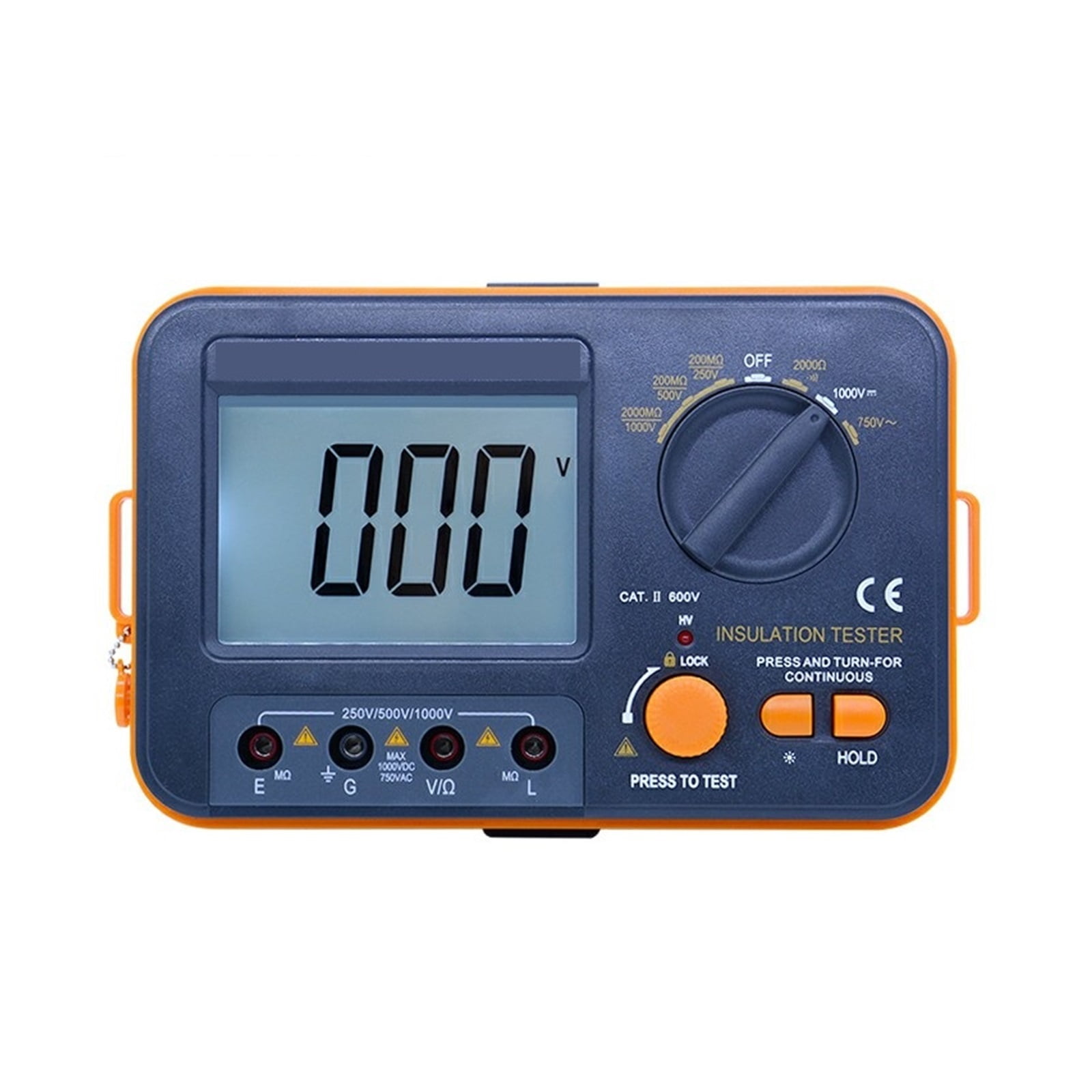

Digital Insulation Resistance Meter Tester Megohmmeter Ohmmeter Voltmeter DVM 1000V 2G W/ LCD Backlight

<p>Ensure the safety and reliability of your electrical systems with this professional insulation tester. Designed for high-precision diagnostics, this heavy-duty megohmmeter is the ideal tool for testing the insulation resistance of motors, transformers, cables, and household appliances. Whether you are conducting routine maintenance or troubleshooting complex industrial circuits, our megger provides multiple test voltages to meet diverse international standards. Featuring a large, easy-to-read digital display and a robust auto-discharge function for enhanced safety, this device delivers stable and accurate readings even in high-interference environments. Compact and durable, it is an essential diagnostic instrument for electricians and engineers committed to electrical fire prevention and system integrity.</p><p>Digital Insulation Resistance meter Tester Megohmmeter Ohmmeter Voltmeter DVM 1000V 2G w/ LCD Backlight</p><p></p><p>General Description</p><p>This instrument is a digital insulation tester which adopts DC voltage converter of low consumption,high converter ratio,and inductance-type energy storage to convert the voltage of 9V DC into 250V/500V/1000V DC.With digital bridge, the instrument can test insulation and its main features include easy to operate,wide test range,highly stable performance,backlight LCD display,date hold and auto power off.Using a shoulder strap,it can be used by both hands ,It is an instrument that can be used in testing insulation of electric machines,cables,electronic equipment ,electric facilities,etc.</p><p></p><p>Features:</p><p>1. An accurate, reliable and easy-to-use insulation tester</p><p>2. Large LCD display, easy to read</p><p>3. Strong anti-magnetic and anti-jamming function</p><p>4. Full function protection, anti high voltage circuit design</p><p>5. Unit symbol display, easy to use</p><p>6. High voltage and short circuit input alarm</p><p></p><p>Specifications:</p><p>Insulation resistance: 250V/500V/1000V</p><p>250V 0~200M ohm (4.0%+2)</p><p>500V 0~200M ohm (4.0%+2)</p><p>1000V 0~2G ohm (4.0%+2)</p><p>Resistance: 2000ohm (1.0%+5)</p><p>DCV: 0-1000V (1.0%+5)</p><p>ACV: 0-750V (1.5%+5)</p><p></p><p>Testing voltage </p><p>250V±10% </p><p>500V±10% </p><p>1000V±10% </p><p>Range </p><p>200M </p><p>200M </p><p>2000M </p><p>Accuracy </p><p>±(4.0%rdg+2) </p><p>Short circuit current </p><p>1.7mA </p><p>1.7mA </p><p>1.4mA </p><p>Median resistance </p><p>2M </p><p>2M </p><p>5M </p><p>Make sure the voltage at E&amp;L terminals be above the specified resistance lower limit at 90 of testing voltage </p><p>Terminal position </p><p>EM L(M ),G </p><p>Range </p><p>Accuracy </p><p>Resolution </p><p>Input impedance </p><p>DC1000V </p><p>±(0.5%rdg+6) </p><p>1V </p><p>1M </p><p>AC750V </p><p>±(1.0%rdg+6) </p><p>1V </p><p>2K </p><p>±(0.8%rdg+6) </p><p>1 </p><p>testing current:1mA </p><p>continunity test </p><p>&lt;50 beeper alarm,testing current 1mA </p><p>Terminal </p><p>V/(IN+),G(IN-) </p><p></p><p>Special Function: </p><p>Max.display: 1999 </p><p>Continuity alarm: Less than 30±10 </p><p>Low battery indication </p><p>Data hold </p><p>LCD backlight </p><p>Function protection </p><p>Input impedance: 1M </p><p>Sampling rate: 3 times/Sec. </p><p>Manual range </p><p></p><p>General Characteristic: </p><p>Power source: 6 * 1.5V AA battery or external DC 9V power source </p><p>(Not included) </p><p>LCD size: 75*52mm </p><p>Weight: 580g </p><p>Meter size: 176 (L) x116 (W) x63 (D) mm </p><p>Color: Dark gray-yellow </p><p>Package Size: 20.5 * 17 * 7cm / 8 * 6.7 * 2.7in </p><p>Package Weight: 709g / 1.6lb</p>

• Resistance: 2000ohm (1.0%+5)
• DCV: 0-1000V (1.0%+5)
• ACV: 0-750V (1.5%+5)
• Max.display: 1999
• Continuity alarm: Less than 30±10
