M2 SSD Enclosure External SATA NVME SSD with Dual USB3.2 Protocol

M2 SSD Enclosure External SATA NVME SSD with Dual USB3.2 Protocol

• M. 2 NVME SSD 2-in-1 hard drive cartridge USB3.1 HUB function

  The M.2 drive housing with HUB functionality will provide you with an additional number of ports, so you can easily connect more devices and accessories to your computer or laptop.

  Ready to use upon opening the box

  It is compatible with M.2 drives with SATA and PCIe (NVMe) interfaces

  Supports various lengths of "M key" and "M+B key" drivers (2242, 2260, 2280)

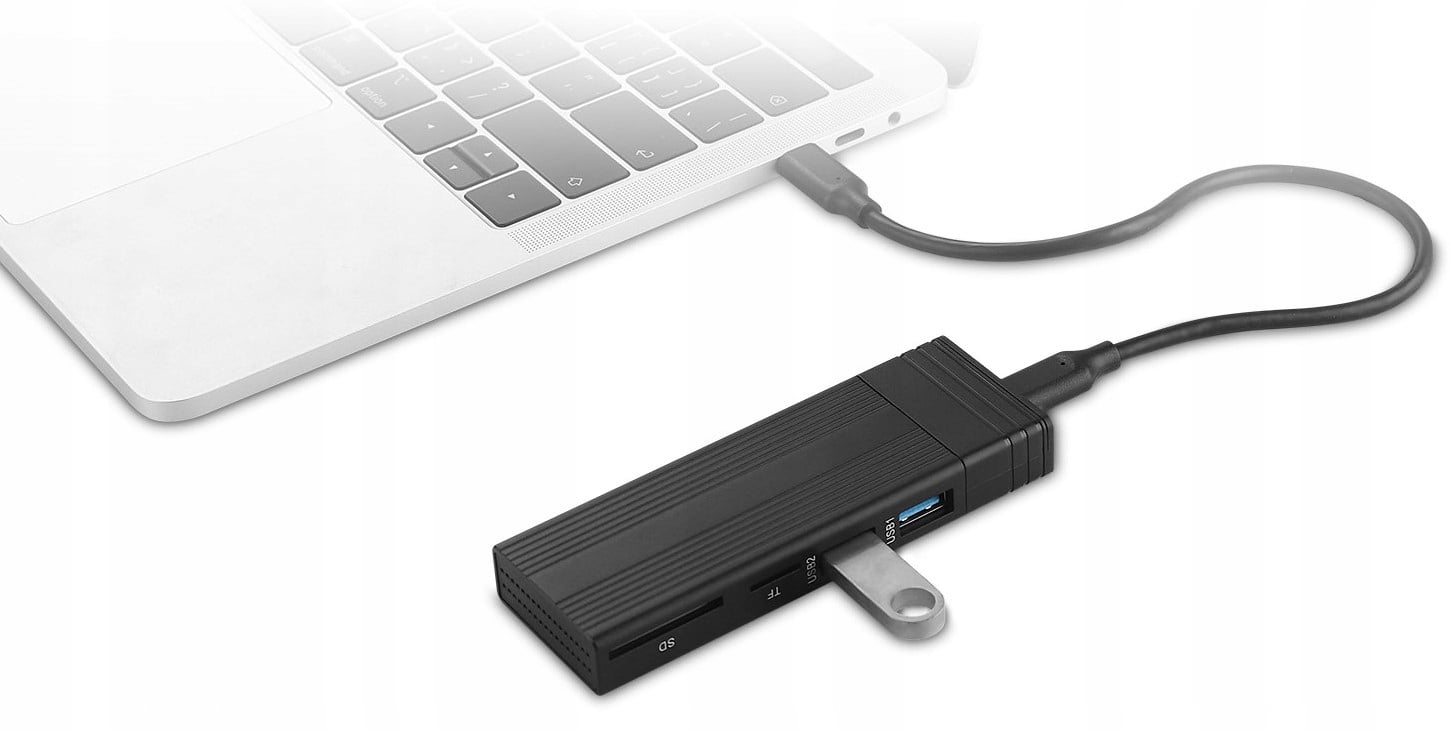

  Provide access to more ports

  UASP&TRIM functionality

  USB3.1 Gen.2

• Product features:

  This chassis is compatible with M.2 drives with SATA and PCIe (NVMe) interfaces

  Supports various lengths of "M key" and "M+B key" drivers (2242, 2260, 2280)

  Each section of the disc has a separate buckle to ensure that the disc does not loosen

  The shell has a USB-C 3.1 gen.2 port, resulting in data transfer speeds of up to 10Gb/s

  UASP&TRIM technology

  Plug and Play - No need to install drivers, works immediately after connection

  2 USB ports with a data transfer speed of up to 480Mbps

  The memory card reader supports the most popular SD/TF and MicroSD memory cards (data transfer speed up to 480Mb/s)

  Maximum supported drive capacity: 2 TB

  Maximum data transmission speed: up to 10Gb/s

  Wide compatibility

  Easy disk installation

• Drive box

  If you are looking for small but fully functional tools that can make your work easier, then this drive case will definitely meet your needs.

  It supports up to 10 Gbps transmission speed and up to 2 TB capacity, providing you with almost unlimited possibilities.

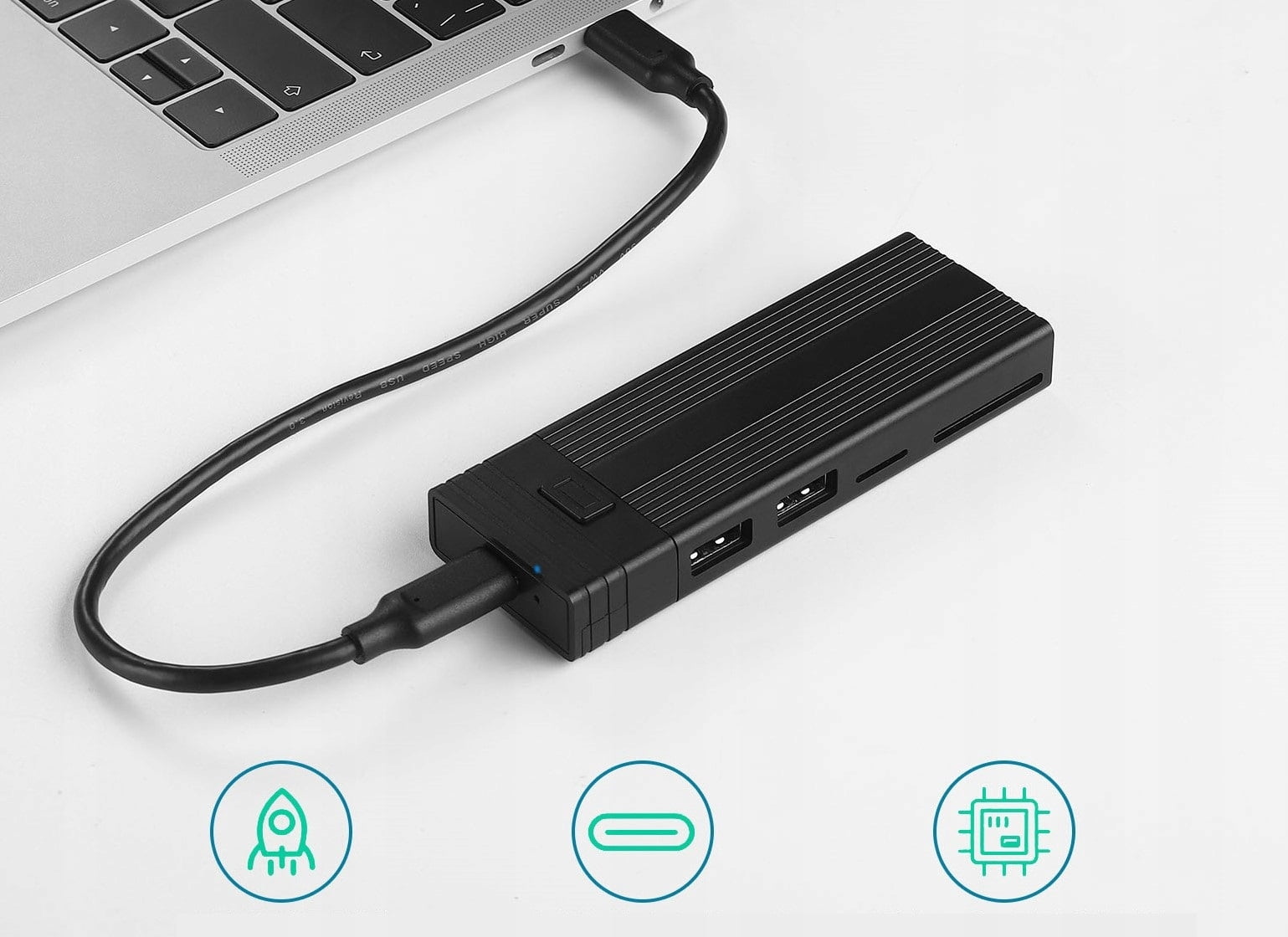

  Fast data transmission

  This product is equipped with an advanced Realtek 9210B chipset and a universal USB C-type output port, allowing the casing to achieve file transfer speeds of up to 10 Gbps.

• Up to 2TB capacity

  This chassis supports SSDs with a maximum capacity of 2 TB. Therefore, you can successfully save everything you need: 4K movies, music, or over 200000 high-quality photos.

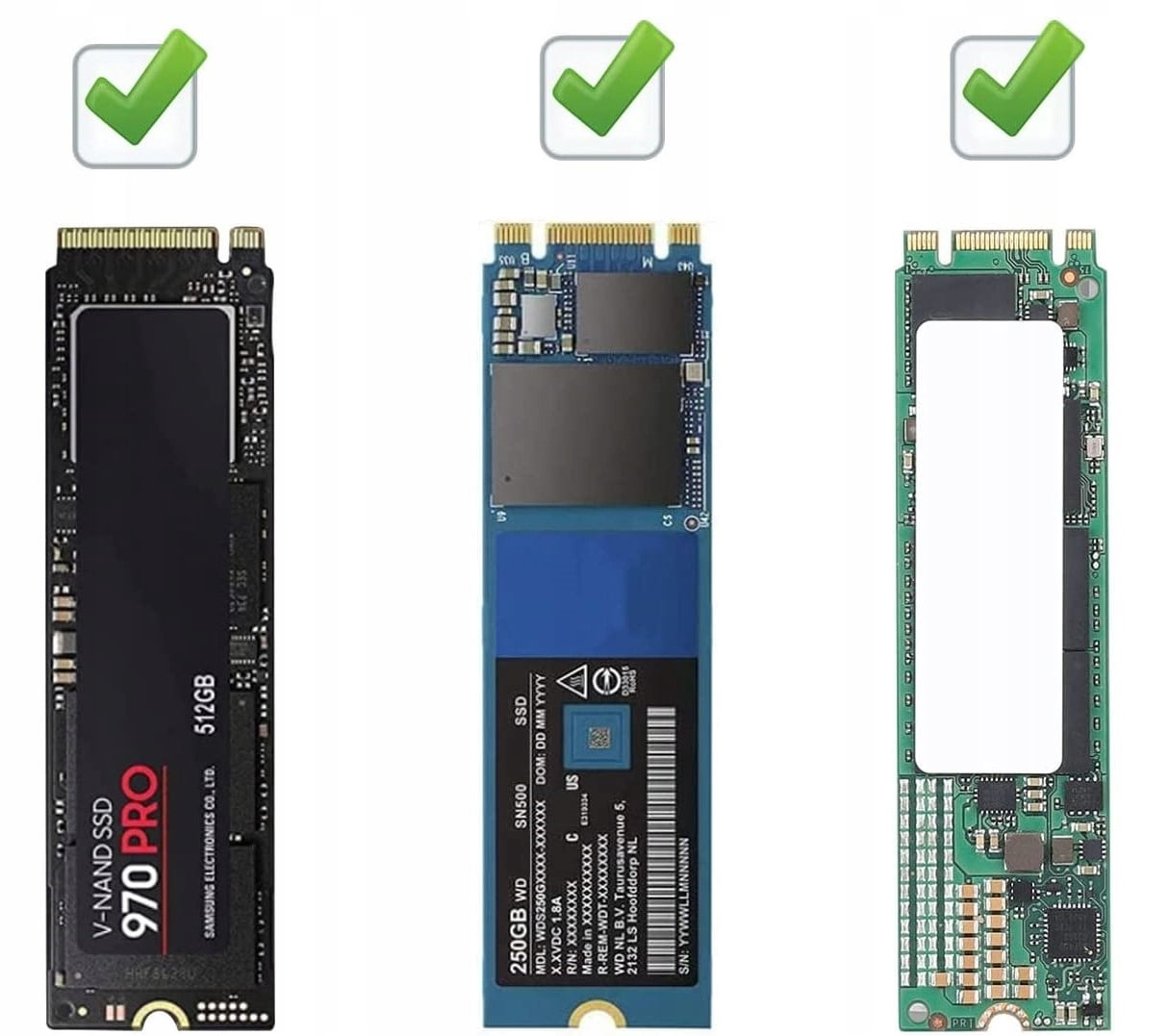

  compatibility

  This chassis supports M.2 SSDs:

  M-key NVMe

  B+M key NVMe

  B+M key SATA (NGFF)

  The sizes are 2242, 2260, and 2280.

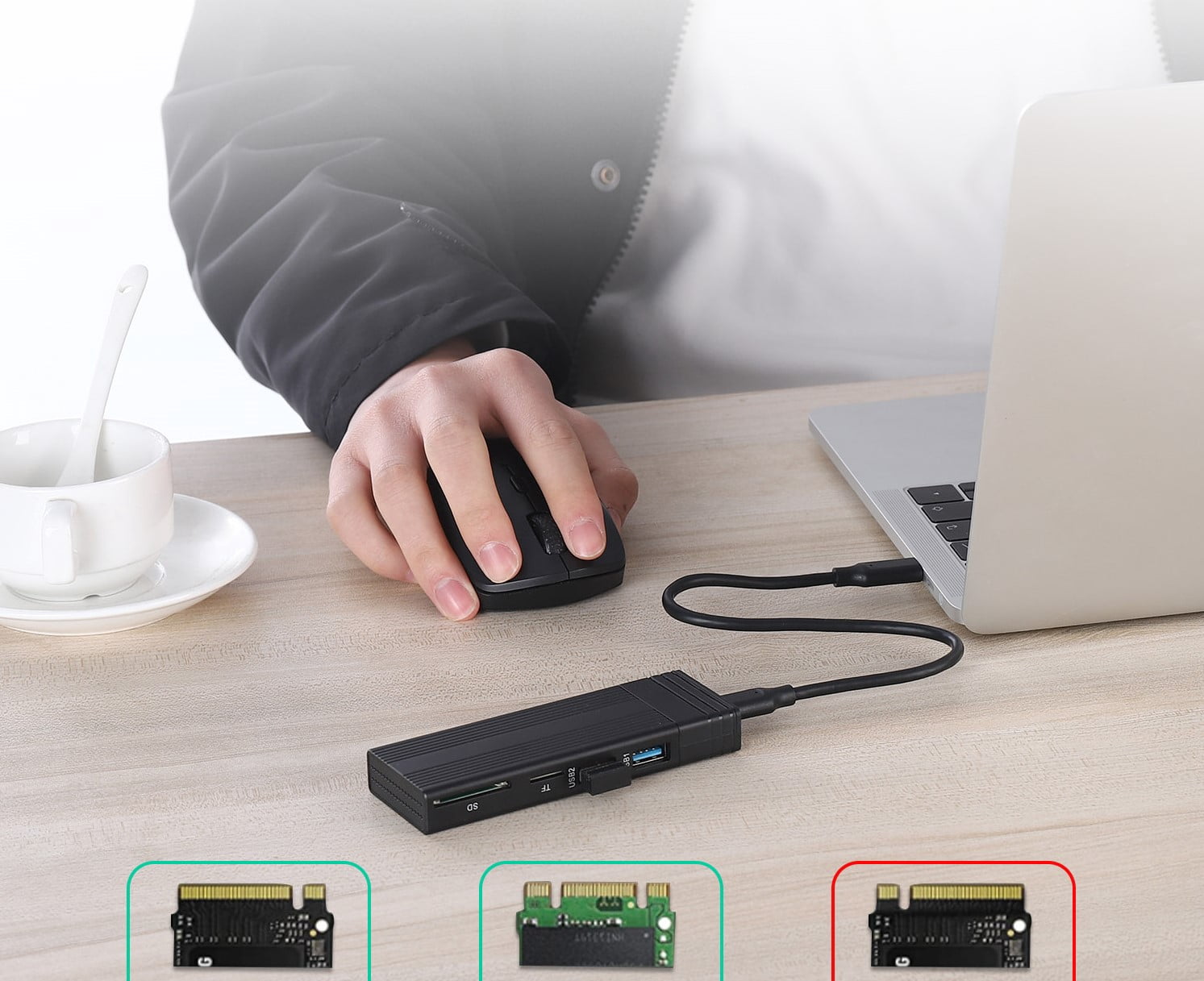

  This chassis does not support PCIe M-Key AHCI SSD and B-Key SATA SSD.

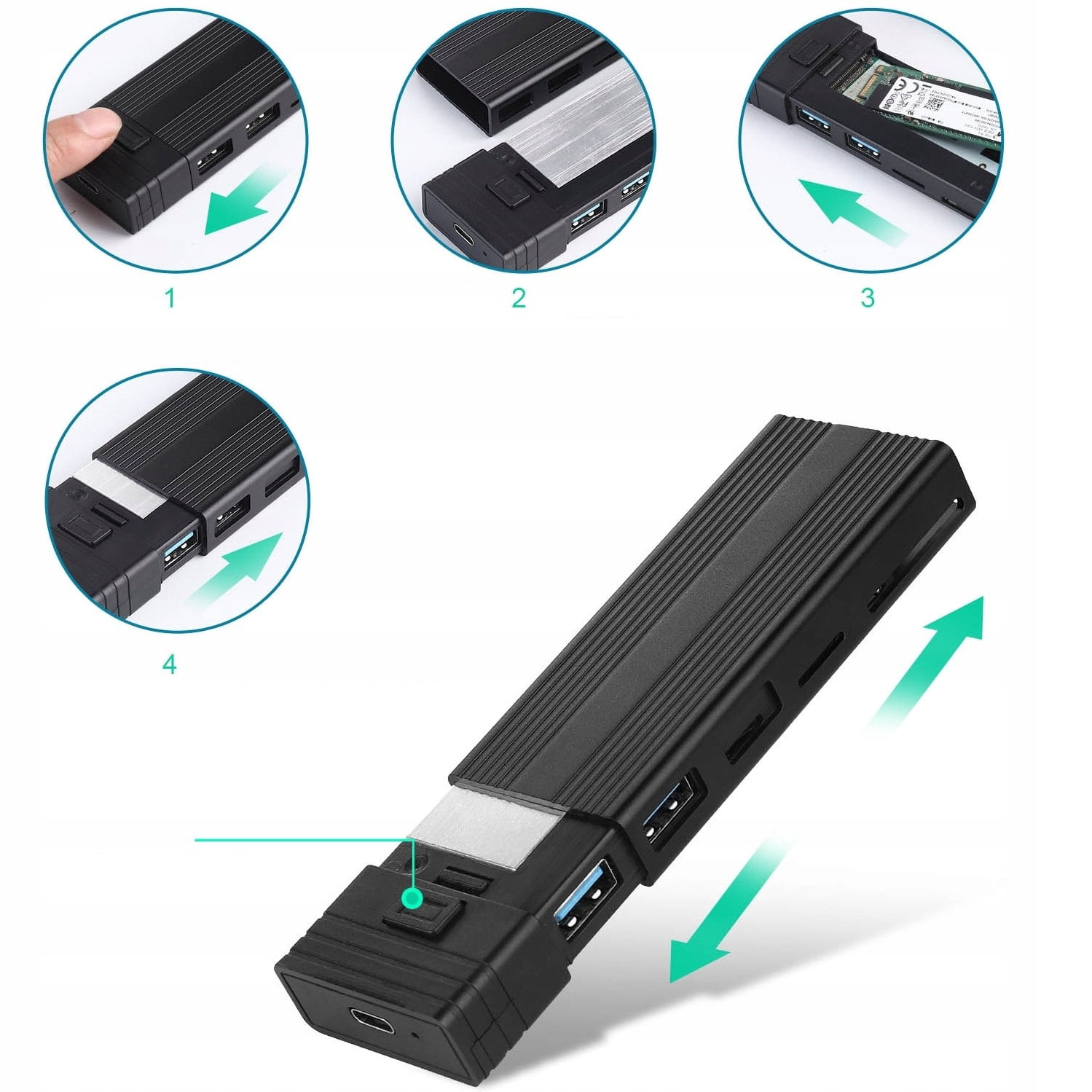

• Easy disk installation

  Installing the drive into the casing is very simple and does not require any tools.

  Follow the instructions in the figure to operate:

  1. Press the button on the shell

  2. Open the box

  4. Place the M.2 SSD as shown in the picture

  5. Closing the case

  6. Press the lock button

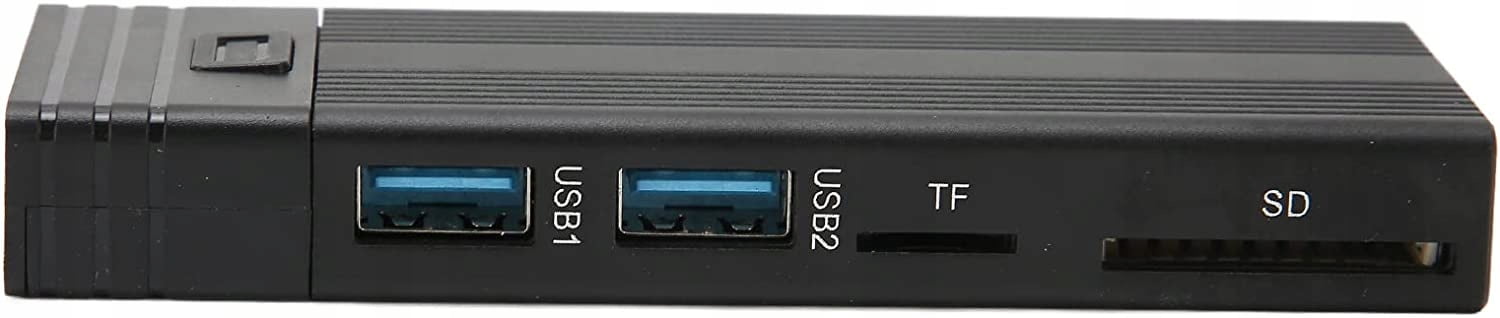

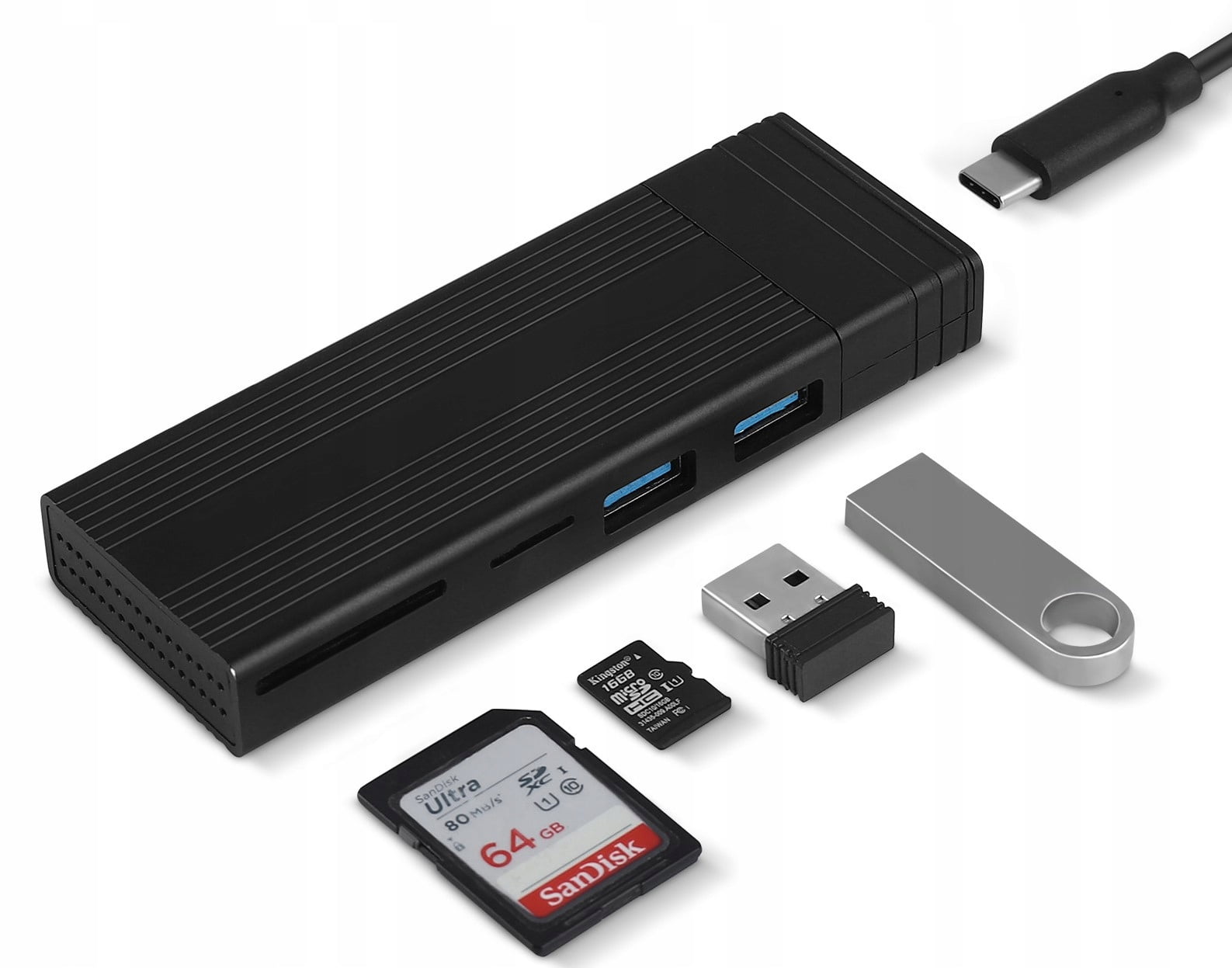

• Output:

  1 USB 3.0

  1 USB 2.0

  1 SD card reader

  1 TF card reader

  1 M.2 SDD (2242/2260/2280)

  Data transmission can reach up to 10Gbps.

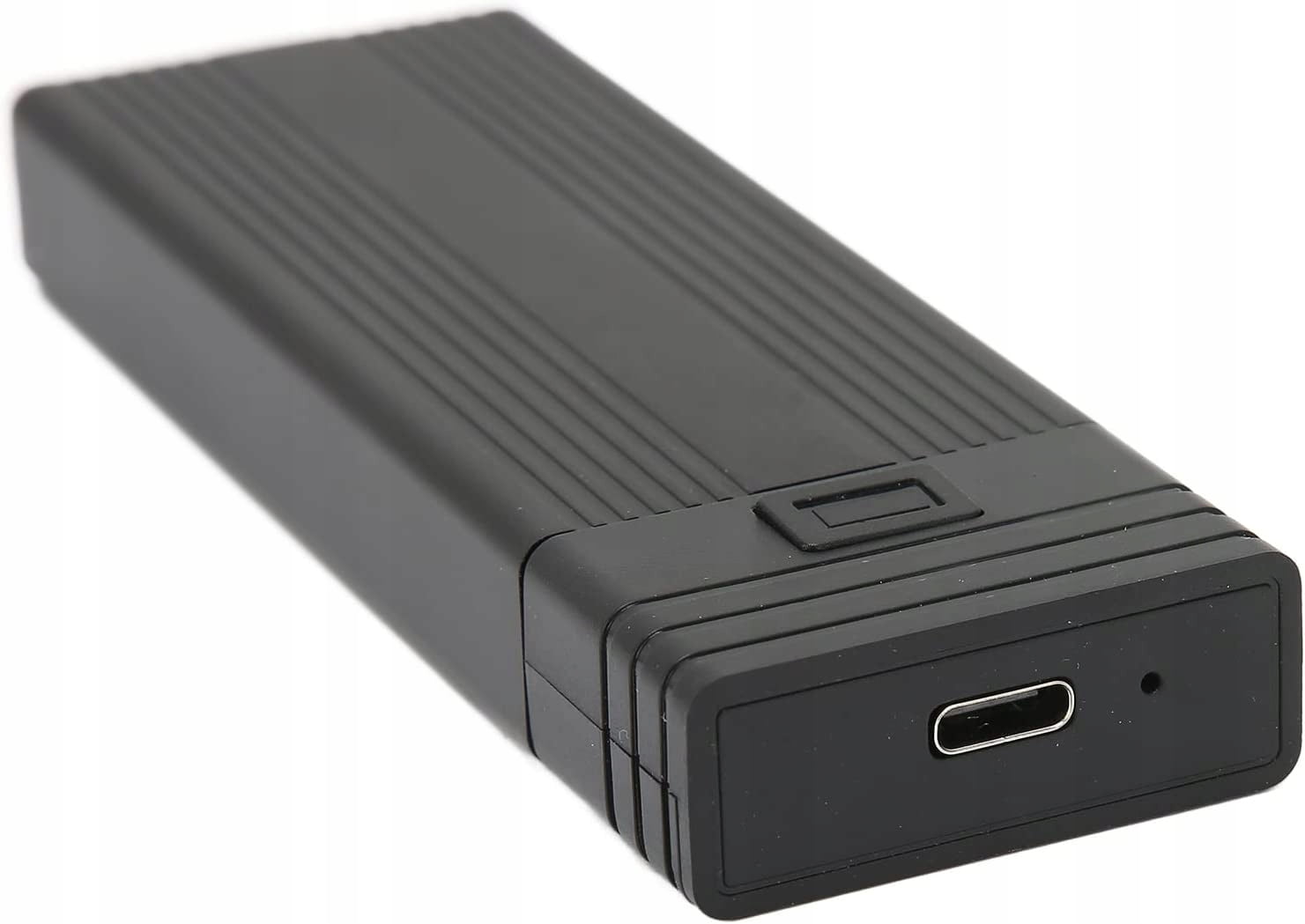

  Input:

  Type-C connector

• UASP and TRIM

  This case supports UASP and TRIM technologies.

  With UASP, USB devices can queue commands and execute multiple commands simultaneously. Compared to traditional USB devices, this can increase read and write transfer speed by an average of 30%.

  On the other hand, Trim technology will tell SSDs which data blocks are no longer in use and allow them to be refilled with data. It can also improve the performance of the drive and extend its lifespan.

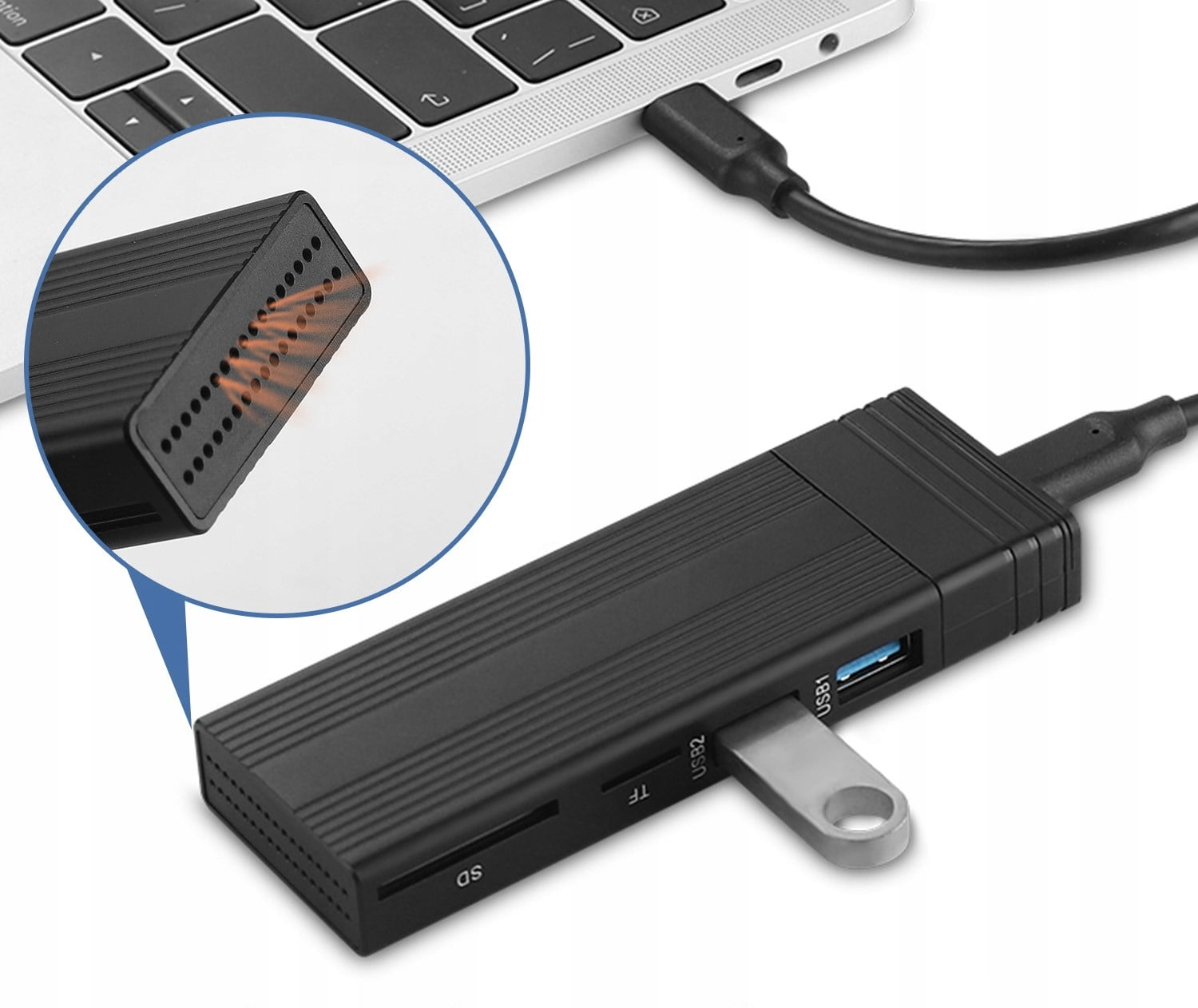

• Good heat dissipation

  The USB C hub is beneficial for hard disk cooling and makes operation more stable.

  This kit includes a heat sink that improves disk heat dissipation and a set of thermostatic disks for installing the heat sink onto the disk.

  In addition, it is lightweight and compact, so you can carry it with you.

• Specifications:

  Model: M182

  Color: Black

  Chipset: Realtek RTL9210B

  SSD support: M.2 NVME M KEY and B+M KEY (PCIE protocol) SSD, M.2 NGFF B+M KEY (SATA protocol) SSD

  M. 2 SSD dimensions: 2242/2260/2280

  Interface: Type C, USB 2.0 * 2, SD/TF card reader

  Transmission speed: up to 10Gbps (SATA: 6Gbps, NVMe: 10Gbps)

  Maximum supported disk capacity: 2TB

  Support system: Windows 7/8/10/11/Linux/OS

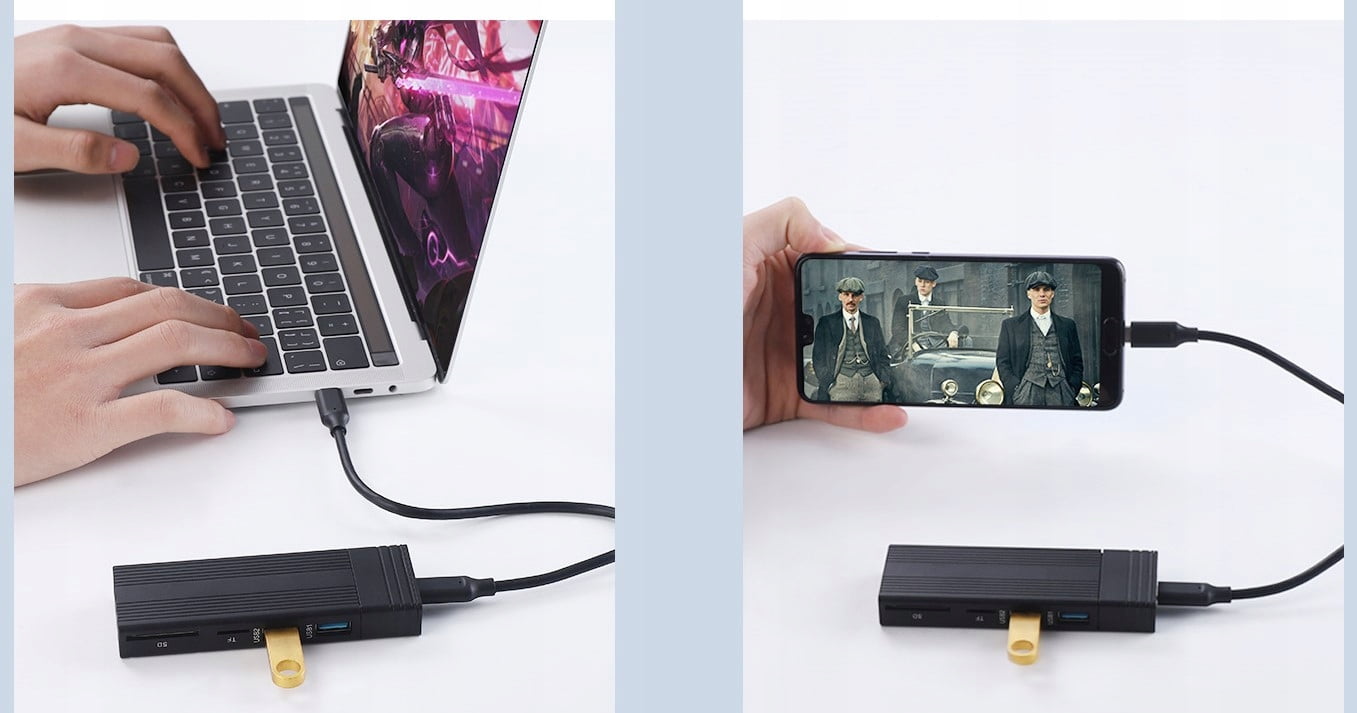

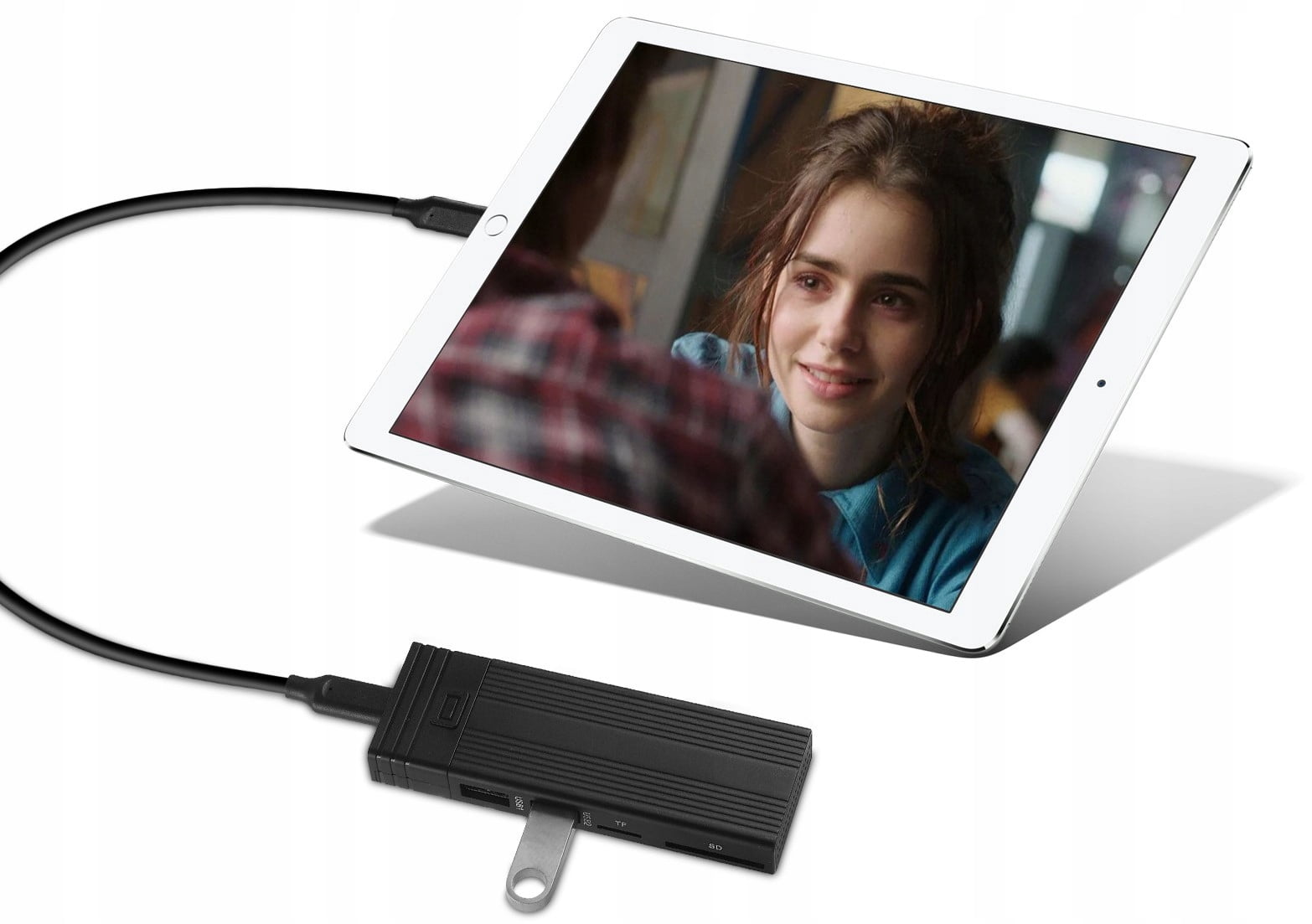

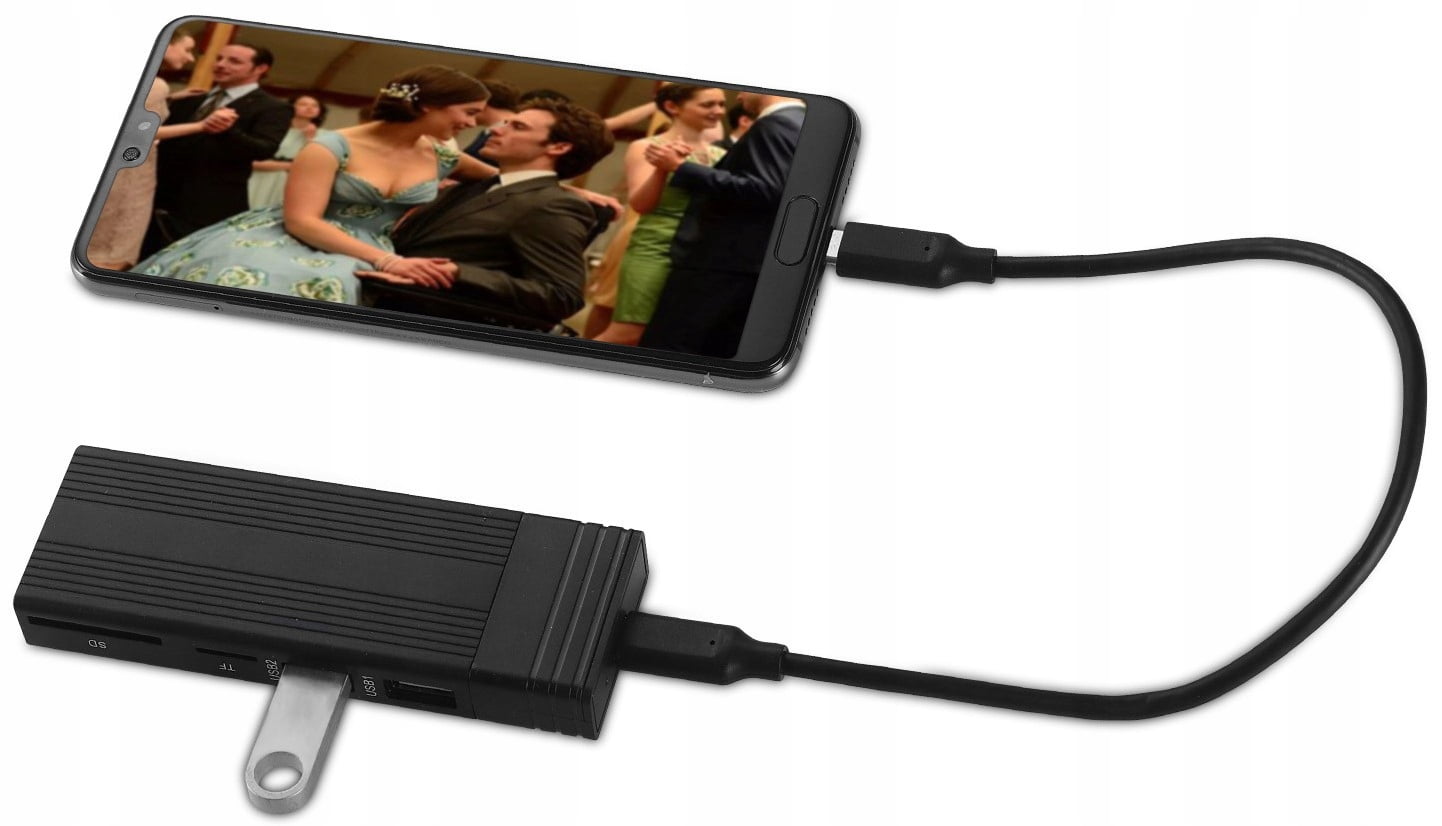

  Supported devices: mobile phone (OTG function), tablet, computer, PS5 gaming console

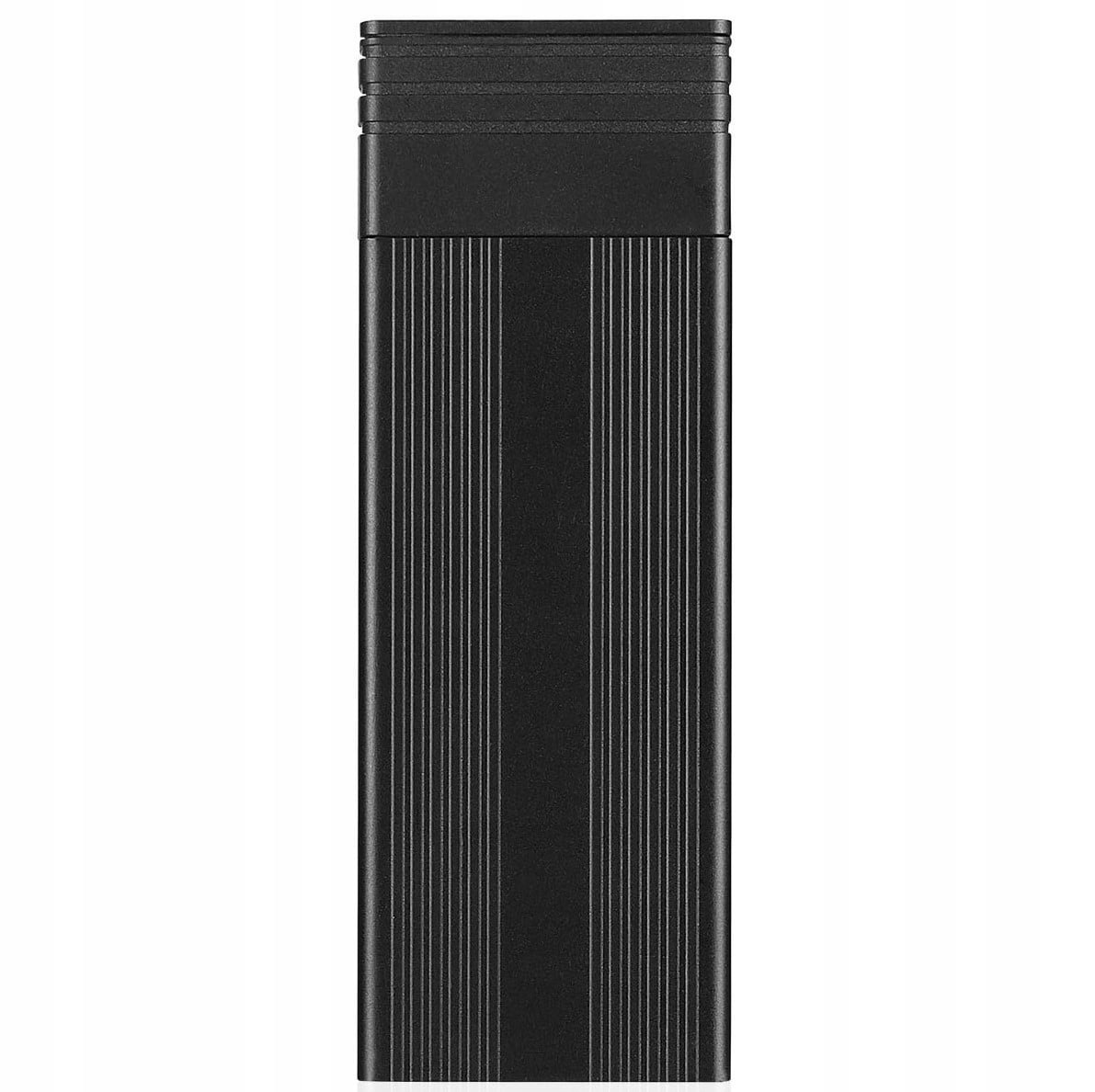

  Material: aluminum alloy+PCB

  Dimensions: 101 x 39 x 14.5 (millimeters)

  Weight: 130 grams

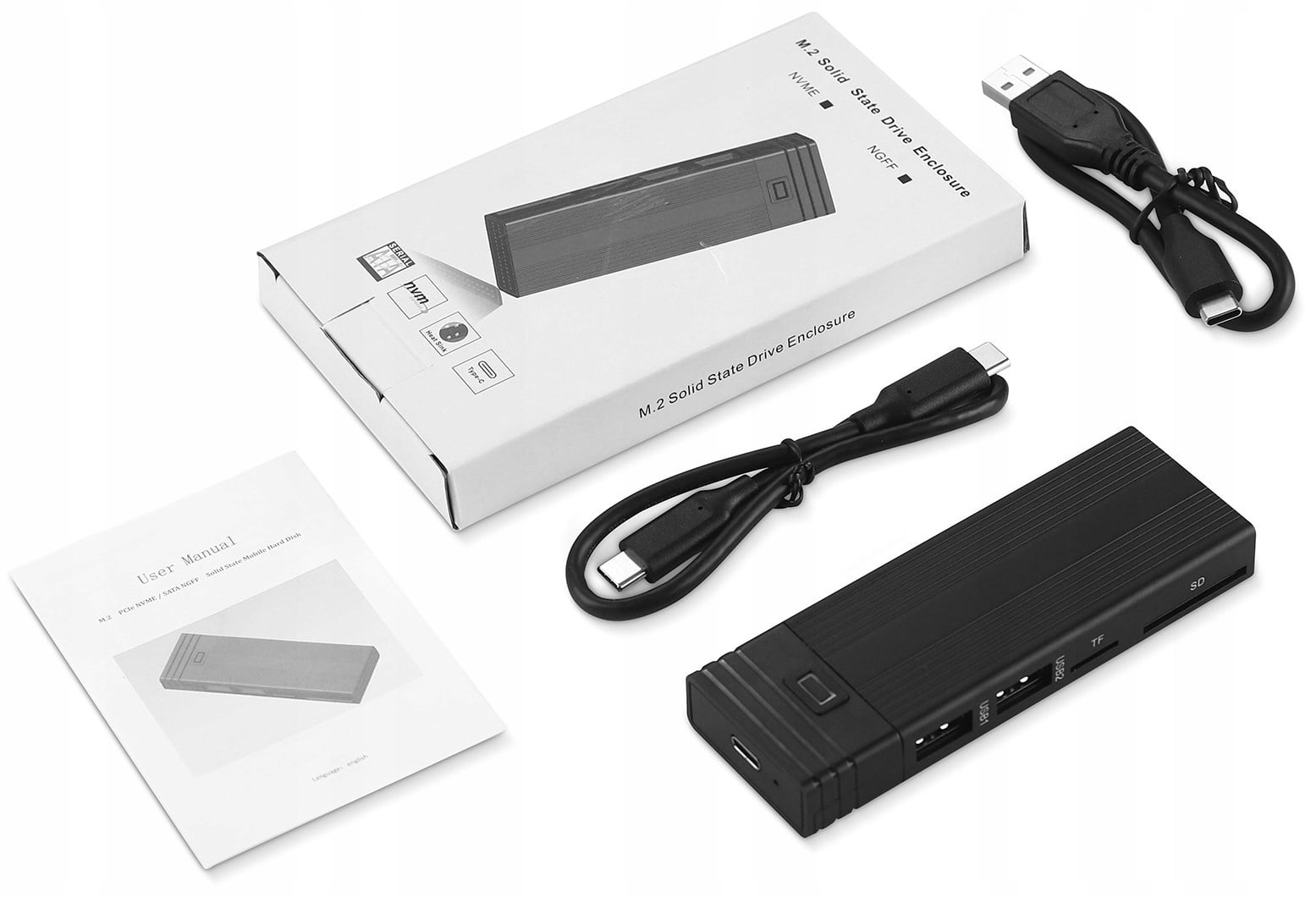

• The set includes:

  1x M182 hard drive case (black)

  1 USB-C to USB-C cable

  1 USB-C to USB-A cable
