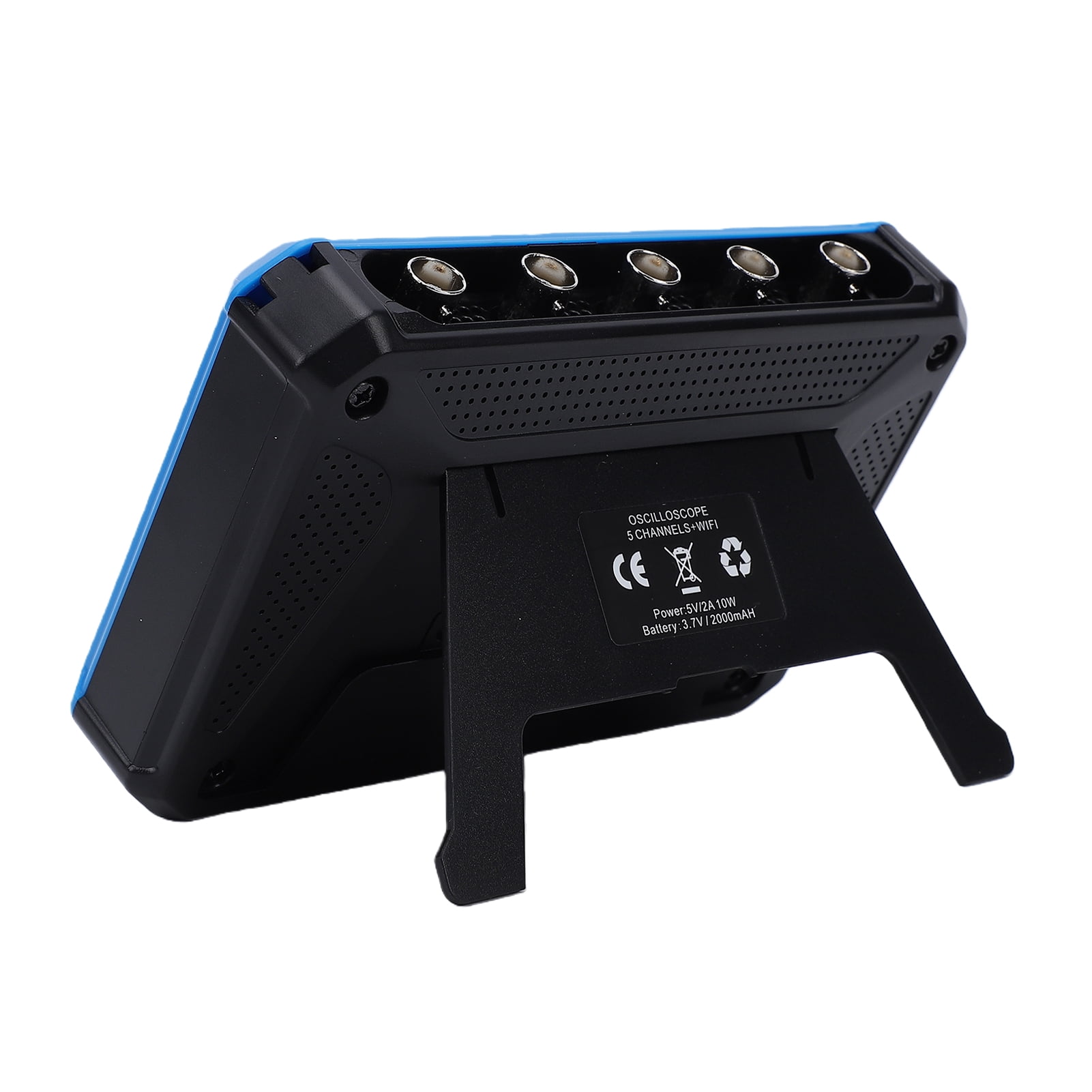

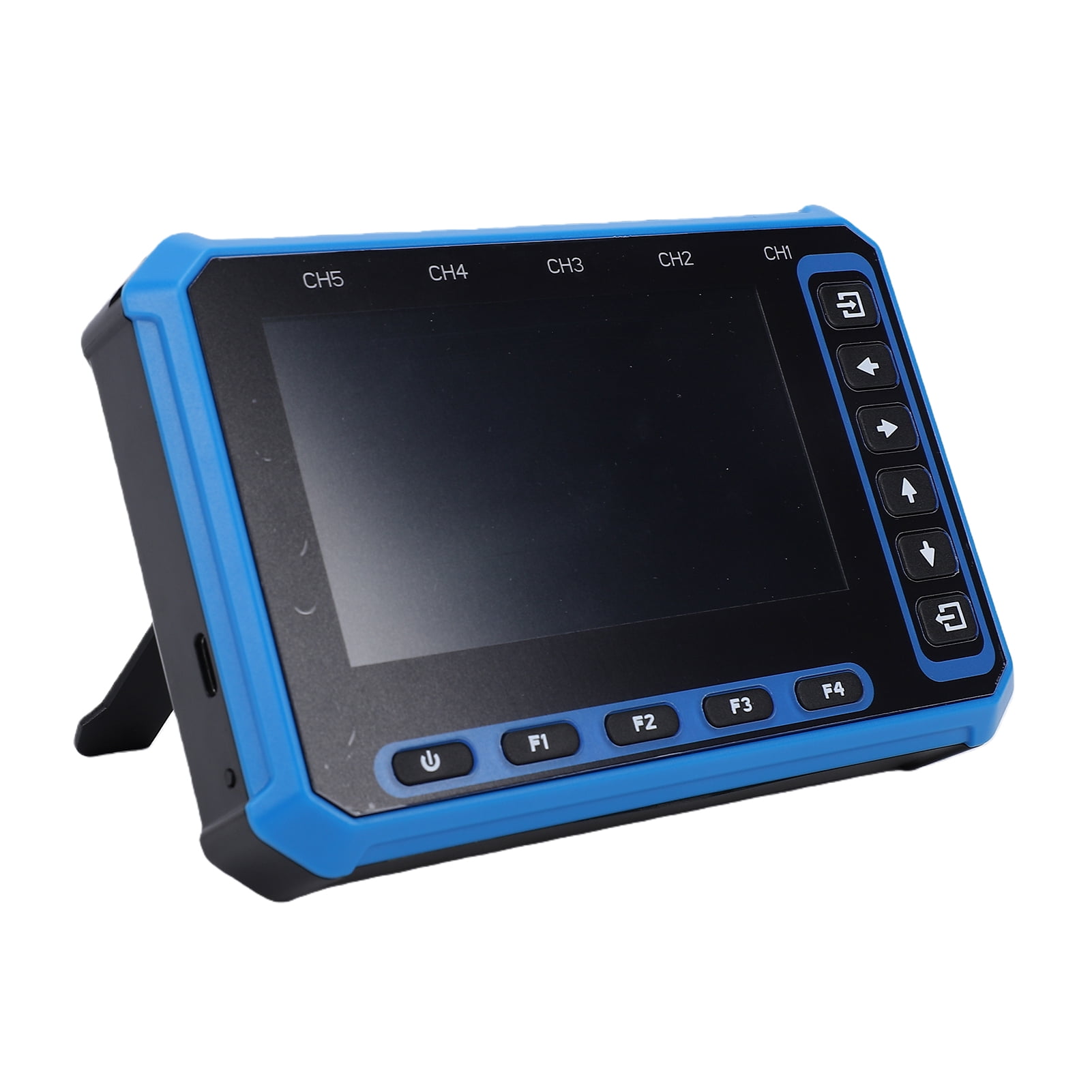

Portable Digital Oscillometer Multi Channel Signal Analyzer 5 Channel Handheld Oscillometer Digital Portable Scope With 2.8 Inch Display 1MHz Bandwidth 3MHz Sampling Rate For Low

5 Channel Handheld Oscillometer Digital Portable Scope with 2.8 Inch Display 1MHz Bandwidth 3MHz Sampling Rate for Low Frequency Signals Auto Normal Single Detection<br/>Specification:<br/>Item Type: 5-Channel Handheld Oscillometer<br/>Screen: 4.3-inch IPS<br/>Resolution: 480x272<br/>Channels: 5<br/>Interface: USB Driver-Free<br/>Battery: 1x2000mAh Rechargeable Li-ion Included<br/>Standby Time: < 3 hours<br/>Maximum Sample Rate: 3MHzx3 / 1.5MHzx4 / 1.5MHzx5<br/>Bandwidth: 1MHz<br/>Voltage Range: Screen 4mV/div-4V/div; PC/APP 2mV/div-2V/div<br/>Timebase Range: Screen 1uS/div-4S/div; PC/APP 1uS/div-10800S/divMaximum Measurement Voltage: ±10V X 10 Range: ±100V<br/>Maximun Voltage Swing Voltage: 20V X 10 Range: 200V<br/>Input: Impedance 1 milliohm /20pF<br/>Data Recording: PC Software Depth 8Mx5CH, Up to 90 Hours<br/>Waveform Display: YT/XY/ROLL<br/>Signal Detection Type: Rising Edge/Falling Edge<br/>Vertical Resolution: 8-bit<br/>Displayed Data: Period, Frequency, Maximum Voltage Swing, Maximum/Min, Average, RMS, Amplitude, Duty Cycle, Pulse Width<br/>Signal Output: 1KHz<br/>Languages: English/Chinese/Portuguese/Spanish <br/><br/>Package List:<br/>1 x Oscillometer <br/>2 x Instruction Manual<br/>1 x Charging Cableor1 x Oscillometer <br/>2 x Instruction Manual<br/>1 x Charging Cable<br/>2 Packs x Accessories<br/>5 x Probes <br/><br/>Note:<br/>

• Flexible Connection Options: DIGI-5 Channel Handheld Oscillometer enables wireless and wired dual-mode operations. With WiFi connectivity, it allows remote control via 2.4G/5G WiFi, suitable for high-altitude work or confined space detection
• Low Frequency Signal Specialist: Featuring a 1MHz bandwidth specialized for low-frequency signals such as audio, sensor, and industrial control signals. It supports up to 3MHz sampling rate for basic R&D and educational needs. The device also offers long-term data recording with 8M×5 channel storage for up to 90 hours waveform data
• Efficient Multi-Channel Monitoring: Equipped with 5 synchronized channels, DIGI-5 Channel Handheld Oscillometer supports multiple signal parallel analysis, perfect for complex scenarios like industrial control, embedded systems, and sensor networks. It reduces device switching time compared to single/dual-channel oscilloscopes, enhancing research and troubleshooting efficiency
• Intuitive Operation: With la
