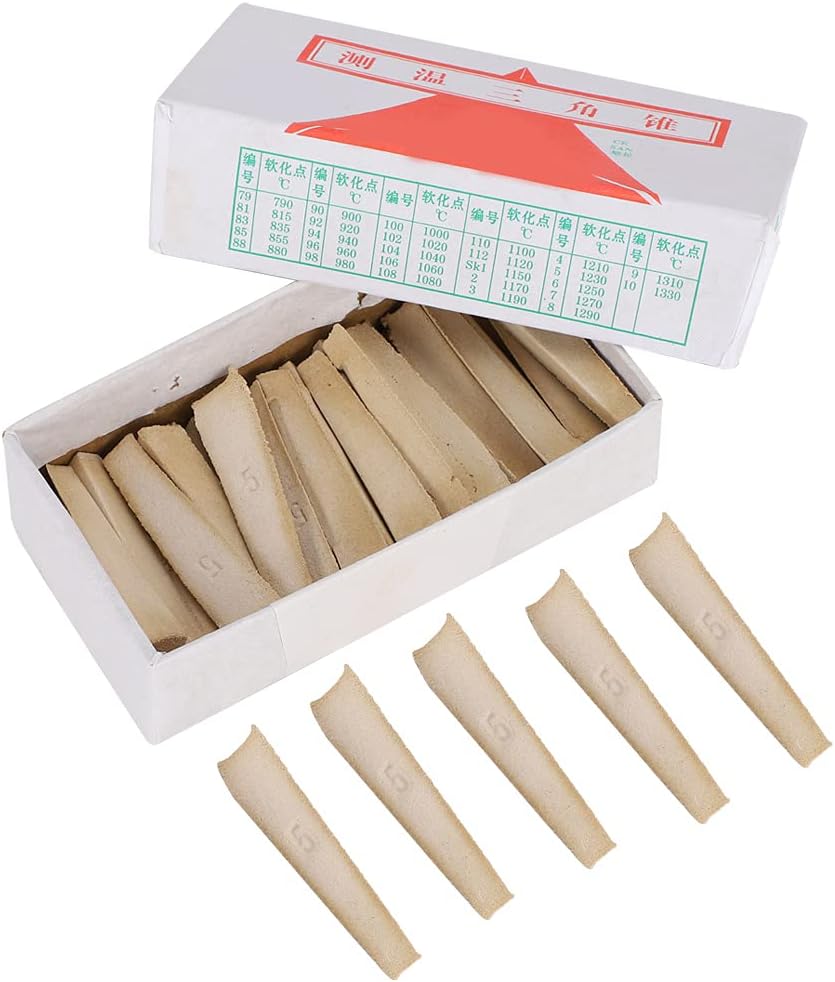

QANYEGN 1230℃ Pyrometric Cones, Temperature Measuring Cone, Ceramic Kiln Temperature Measuring Accessory for Ceramic Craft Kiln

Specification Item Type: Pyrometric ConeModel:5# Material: ClayColor: As Pictures ShownSoftening Temperature: 1230℃ Weight: Approx. 235gSize: Approx. 6.5×1cm/2.56×0.39inchUsage:1. Three adjacent temperature-measuring cones were taken as a group, the lower cone was the guide cone, the higher cone was the backup cone, and the middle cone was the firing cone2. Insert the base side by side about 1cm so that the right angled edges are perpendicular to the ground and tilted 80°3. After drying, it is put in the kiln for easy observation. The better effect is that the bending Angle of the temperature measuring cone should be greater than 20° and less than 100°4. The temperature measuring cone can also be placed at the bottom, middle and top to measure the temperature difference in different positions inside the furnace5. The softening temperature of the temperature measuring cone will be deviated due to different heating methods, so the temperature rise must be slow and 10° per minute is appropriate6. Refractory mud base should be placed flat; In order to master the sintering temperature more accurately, several groups of temperature measuring cones should be selected and several observation points should be set up at the same time7. The base can be kneaded by mud, and then the temperature measuring cone is vertically inserted into the ground, and then tilted by 80°Package List 1 × Box of Ceramic Kiln Temperature Measuring Cone

• PRECISE FORMULAS AND MATERIALS: The pyrometric cone is made from precise formulas and real materials, featuring over 100 ingredients similar to ceramic components, ensuring accurate temperature measurement during firing processes for consistent results across various applications
• ACCURATE TEMPERATURE MEASUREMENT: During the firing process, it is essential to measure temperatures accurately and effectively; the pyrometric cone provides reliable readings that surpass the limitations of standard thermocouples, offering a true representation of the product’s temperature
• ENVIRONMENTAL TEMPERATURE INSIGHTS: Unlike thermocouples that only measure radiant heat, the pyrometric cone gauges the actual temperature of materials, making it indispensable for accurately determining the heating environment and ensuring optimal performance in kiln operations
• LIMITATIONS OF OTHER METHODS: Common methods such as temperature measuring rings have temporal limitations since they calculate temperatures post-firing; in contrast, the pyrometric cone delivers real-time insights throughout the sintering process, providing vital data for your materials
• WIDELY USED IN VARIOUS APPLICATIONS: This versatile pyrometric cone is widely utilized to determine the sintering temperature of a range of materials, including ceramics, abrasives, refractories, and chemicals, making it an essential tool in material science and industrial processes
