USB 3.1 Type C USB-C Female Panel Mount to USB 3.0 Motherboard 19pin 20pin Header Extension Cable 40CM

Mechanical Characteristics Withdraw Force：10N Min Insertion Force： 35N Max Contact Resistance：0.01 OHM Max Insulation Resistance： 10M OHM /300V Min Hi-Pot: DC 300V 10ms Compatibility: USB 2.0&USB3.0 Environmental Characteristics Temperature Range：-25°C~ +85°C Package: 1xUSB3.0-20Pin to USB-C 3.1 cable+PCI baffle

• USB 3.1 Type C Female Adapter Cable, USB 3.0 Motherboard 19pin 20pin Header Cable Extension, PCI Motherboard Extension Cable, USB Type C Data Transfer Cable Adapter, USB Cable Extension

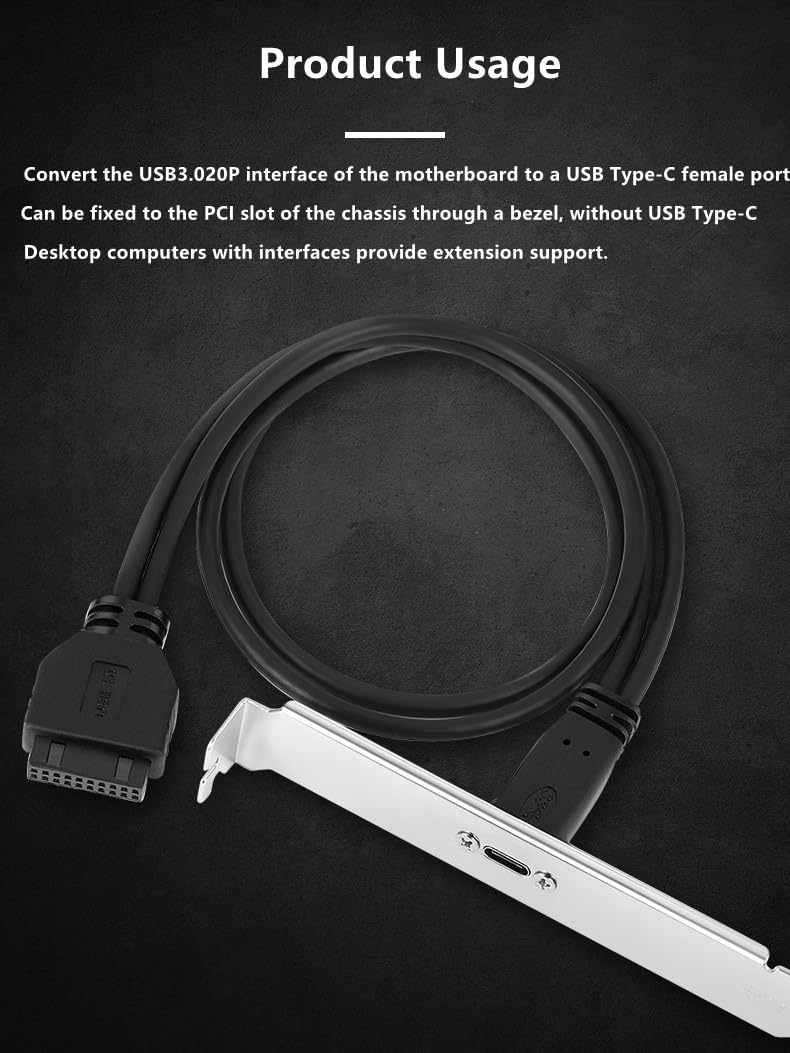

• Used for expanding the USB3.1Type-C female interface of the IDC20P female interface device, with the female C fixed to the panel. Widely used for expanding Type C interfaces on chassis motherboards, meeting the needs of Type-C devices for direct connection to computer charging and data transmission
• We have designed this adapter cable according to the USB3.1 Gen1 standard. The USB Type-C female port supports forward and reverse plugging, and both sides can reach the transmission speed of USB3.0, which can support high-speed signal transmission at a maximum rate of 5Gbps.
• The wire uses 24+32AWG specifications, and the core wire is made of tinned copper material to improve data transmission stability. The Type-C motherboard is certified by the USB Association and meets the standard of 5000 plug and unplug usage.
• Designed and produced using USB Association standards, compatible with mainstream motherboard interfaces
• The ear design is easy to secure to any panel port, and pairing with regular nuts is convenient. Please confirm that the chassis motherboard has a USB 20P expansion socket, and ensure that the 20P is plugged in and connected to the device properly
